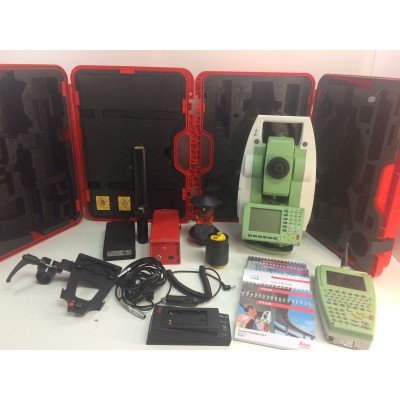

Used Leica TCP1201 1″ Complete Robotic Total Station

Used Leica TCP1201 Total Station with 1” angle accuracy and dual compensator on V&H axis to compensate tilt error in any directions. Data transfer to a personal computer or any data collectors is possible with the RS-232C interface, and also memory on board can store up 8000 points, which will save you the purchase of data collectors. Unit has a detachable tribrach for convenience of moving it to different set up locations.

Item Specifications:

Magnification: 30XImage: ErectMinimum focusing distance: 1.5m/4.5’Angle accuracy: 1”Angle minimum display reading: 1”Angle units: Switchable between meter or feet, angle degrees or gonDistance measurement to target sheet RS90N-K: 200’Distance measurement to target sheet RS50N-K: 160’Distance measurement to target sheet RS10N-K: 70’Distance measurement precision: ±(3mm 2pmm) rapid measurement, prism modeDistance measuring time: 1.4s every 0.3s tracking modeDistance measuring time: 2.3s every 0.8s coarse modeDistance measuring time: 2.4s every 1.6s fine modeDistance minimum display: 1mm/0.003ftDisplay: SingleData input/output: RS-232C compatible, asynchronous serialInternal memory: Surveying data   coordinates data total 10,000 pointsCompensator: Liquid dual axisCompensating range/Accuracy: ±3’/0.3”Optical plummet: Erect 3XWeight: 5.1kg, 11lbs including tribrach and batteryIncludes:Leica TCP1205 Total StationLeica TribrachLeica BatteryBattery ChargerOriginal carrying caseOwner’s ManualThis unit will be cleaned and calibrated for 8 calibrations points (V&H collimation, Double centering, Optical Plummet, line of sight, plunge, tilt sensor, bubbles, cross hair) in our service department prior to shipping. All batteries will be checked out to confirm that they have at least more than half-life otherwise will be re-celled. EDM will be base line tested to make sure it is reading good distances according to their specs.
