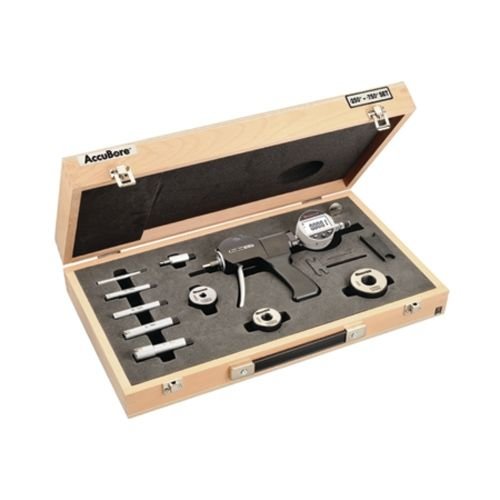

Starrett S781XTHZ 68658

Features

• • Single-hand operation with right- and left-hand viewing flexibility
  • Large, easy-to-read digital display
  • Enhanced wear life with carbide-faced contacts – available from 1/2″ to 8″
  • Convenient “Go/No Go” tolerance indicator lights
  • True alignment with mechanically-driven parallel anvils
  • Push button inch/metric conversion
  • Preset and preset recall
  • Hold, max/min and zeroing capabilities
  • Blind bore measurement is standard from .50″ (12.7mm) and above
  • Output capability for Statistical Process Control (SPC) analysis

Specifications

• Range (in): .250-.750″
• Range (mm): 6-20mm
• Resolution (in): .00005″
• Resolution (mm): 0.001mm
• SPC Output: SPC Output
• Approximate Measuring Depth (in): 3/4 to 2-3/8″
• Approximate Measuring Depth (mm): 18-62mm
• Number of Heads: 5
• Number of Rings: 3
