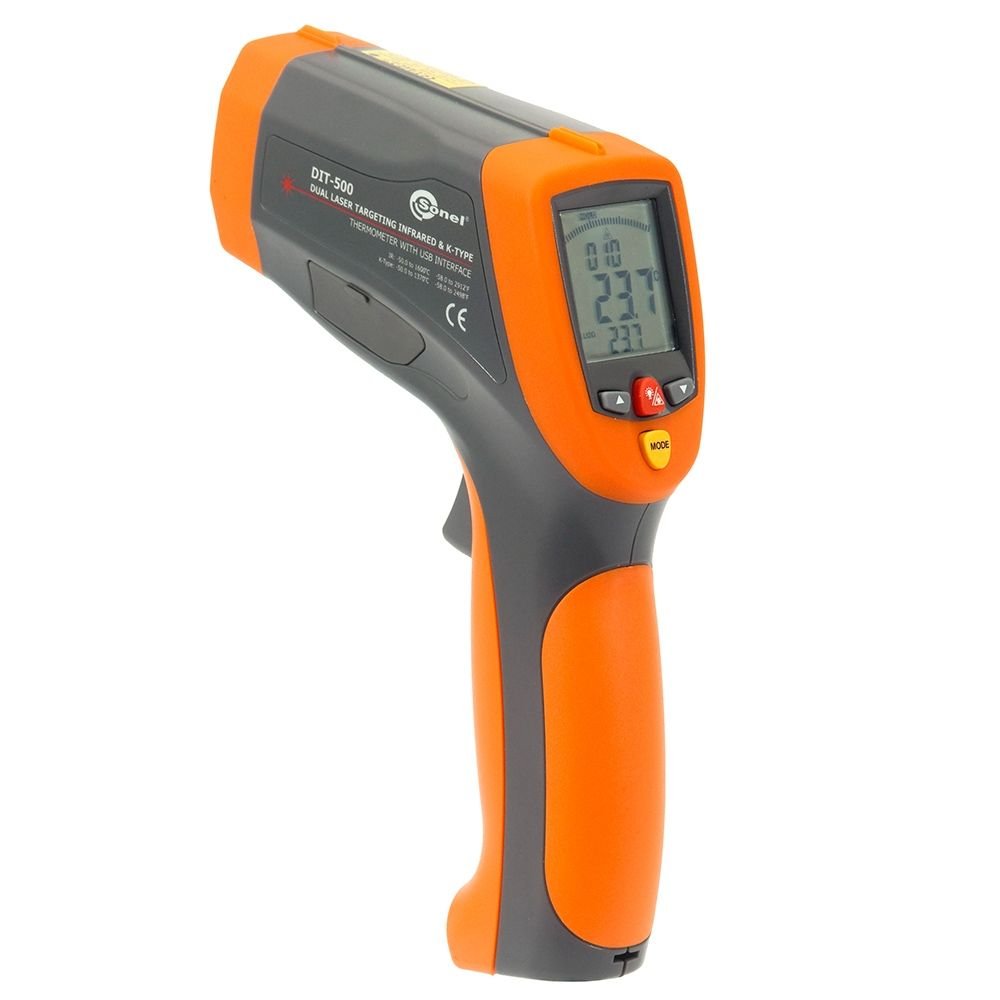

Sonel Test & Measurement DIT-500

Product Highlights

This digital thermometer operates with infrared measurement techniques to determine the surface temperature of an object. The optical system of the device collects radiated energy, and focuses it to an IR detector. The electronics translates optical data into temperature values. To be sure the appropriate object is being measured and to increase accuracy a laser pointer is built-in.

• Operating temperature: 32 F to 122 F / 0 to  50°C
• Storage temperature: -4 F to 140 F / -20 to  60°C
• Humidity: 10 to 90%
• Display LCD: segment with a backlight
• Spectral response: 8~14μm
• Emissivity: digitally adjustable from 0.10 to 1.0
• Polarity: automatic, (-) sign for negative polarity
• Diode laser: output <1 mW, wave length 630~670 nm, class 2 laser product
• Power supply: 9 V battery, NEDA 1604 A or IEC 6LR61
• Over range indication: LCD will show „—-”
• Response time: 150 ms
• Weight: 0.77 lbs / 350 g
• Dimensions: 9.1″ x 6.1″ x 2.1″ / 230 x 155 x 54 mm
