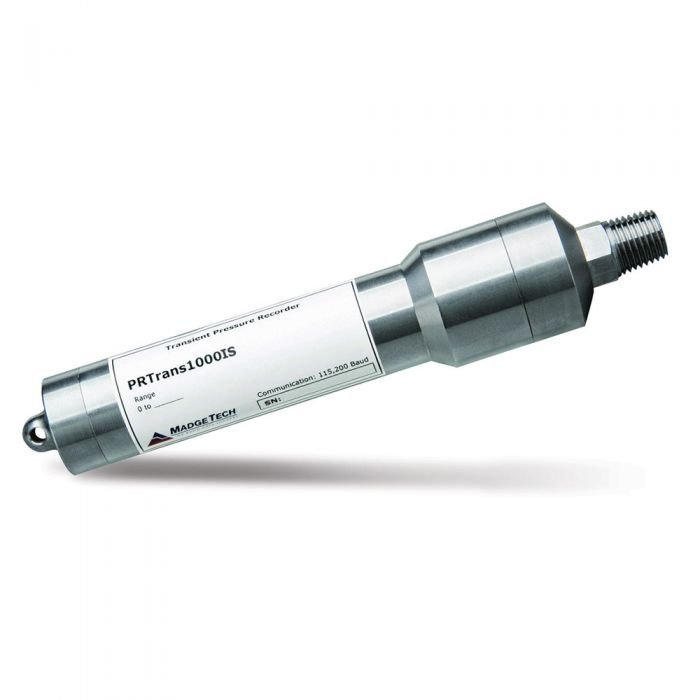

MadgeTech PRTRANS1000IS-30-PSIA

Product Highlights

0 to 30 PSIA Intrinsically Safe Transient Pressure Recorder w/ 1/4″ NPT fitting, stainless steel enclosureThe PRTrans1000IS is an intrinsically safe, transient pressure data logger with NPT fitting. Includes ISO17025 accredited calibration certificate.

• Intrinsically Safe
• 1/4 Inch NPT fitting
• Available in 10 Measurement Ranges

The PRTrans1000IS is an intrinsically safe, transient pressure data logger with 1/4 in. NPT fitting for quick connection. This device is available in models ranging from 30 to 5000 PSI.Data is sampled continuously at 100 Hz, but is only recorded when a user-programmed thresholds are met. The device can record up to 255 events and take as many as 262,143 pressure samples. The PRTrans1000IS also shows up to 32 samples of “pre-trigger” data for further analysis into why the event was triggered.The PRTrans1000IS is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.
