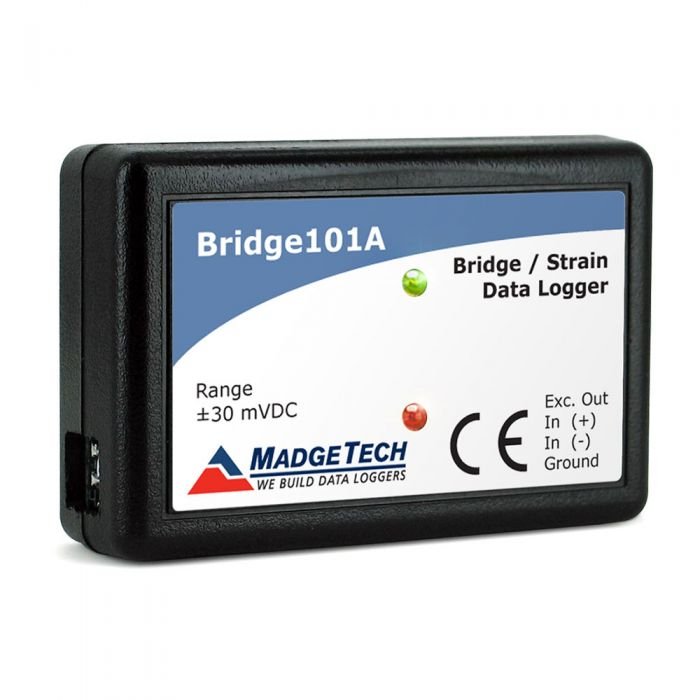

MadgeTech BRIDGE101A-30MV

Product Highlights

Strain Gauge Recorder w/ -1200 mV to 1200 mV Range and 10 Year Battery LifeThe Bridge101A is a compact, bridge/strain gauge data logger. Includes standard calibration certificate.The Bridge101A is a compact, data logger that measures and records voltage, and is typically used in conjunction with strain gauges, load cells, and other low-level DC voltage sources. This device is designed to accurately calculate the output of the gauge to determine parameter levels such as stress, torque, strain, and pressure over a period of time.Available in three different measurement ranges (±30 mV, ±160 mV or ±1200mV), the Bridge101A offers a reading rate of up to 4 Hz with memory capacity of 2,064,384 readings. The device can be configured to start at a specified date and time up to 24 months in advance or by using the push button start/stop feature.The Bridge101A is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.

• Compact Size
• Available in 3 Measurement Ranges
• Memory Capacity of 2,000,000  Readings
