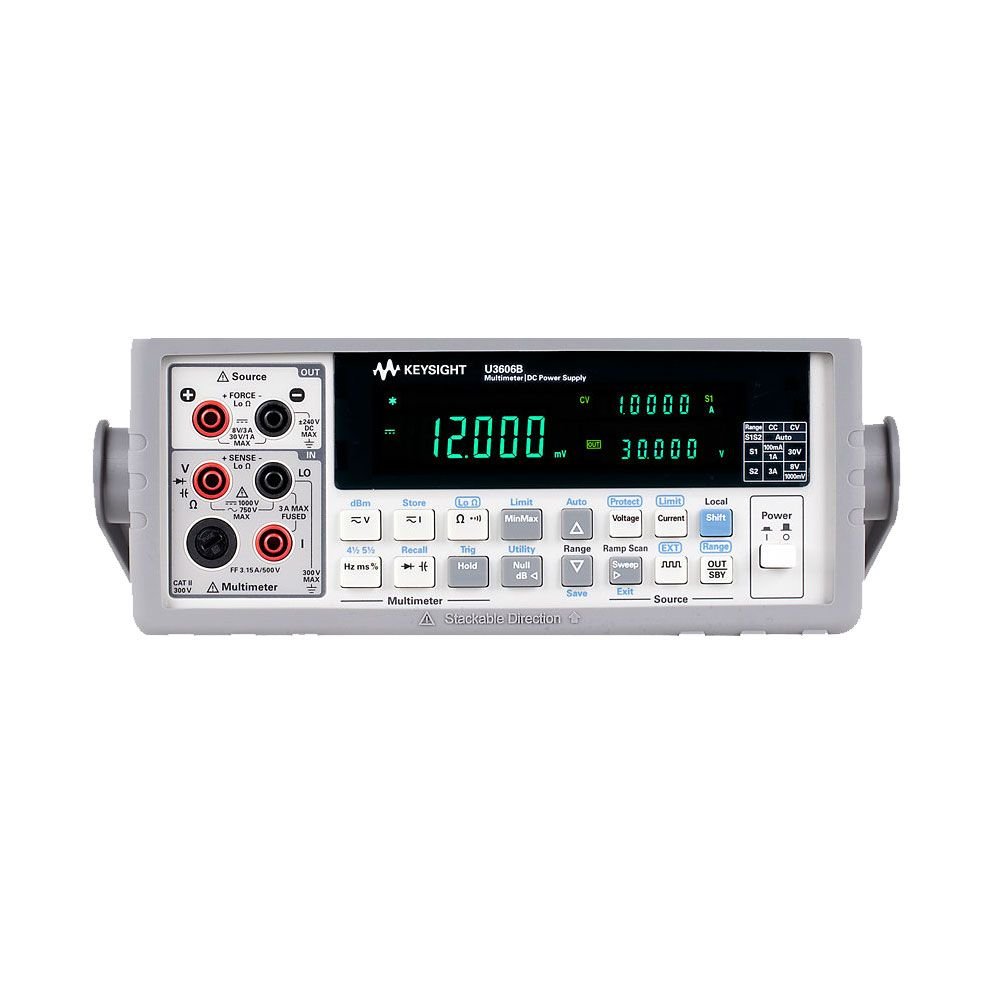

Keysight U3606B

Product Highlights

• 5½ digit, 120,000 counts resolution
• 10 measurement functions and 8 built-in math functions
• 4-wire low resistance measurement with 0.001 mΩ resolution
• 0.025% DC voltage accuracy
• 30 V/1 A, 100 mA/30 V, 8 V/3 A and 1000 mV/3 A
• 0.01% + 3mV load regulation
• Over voltage (OVP) and over current (OCP) load protection
• 4.8kHz Square-wave generator, auto ramp and scan capability Built-in GPIB (IEEE-488) and USB 2.0 full speed interface
• SCPI language compatible
• Universal AC input (100V – 240V, 45Hz to 66Hz)
• Kensington lock slot to prevent theft or misplacement

Each Unit Includes

• Quick Start Guide
• Product Reference CD
• Keysight IO Library Suite
• Certificate of Calibration
• U8201A Combo Test Lead Kit
• USB 2.0 High-Speed Type-A to Type-B cable
• AC power cord
