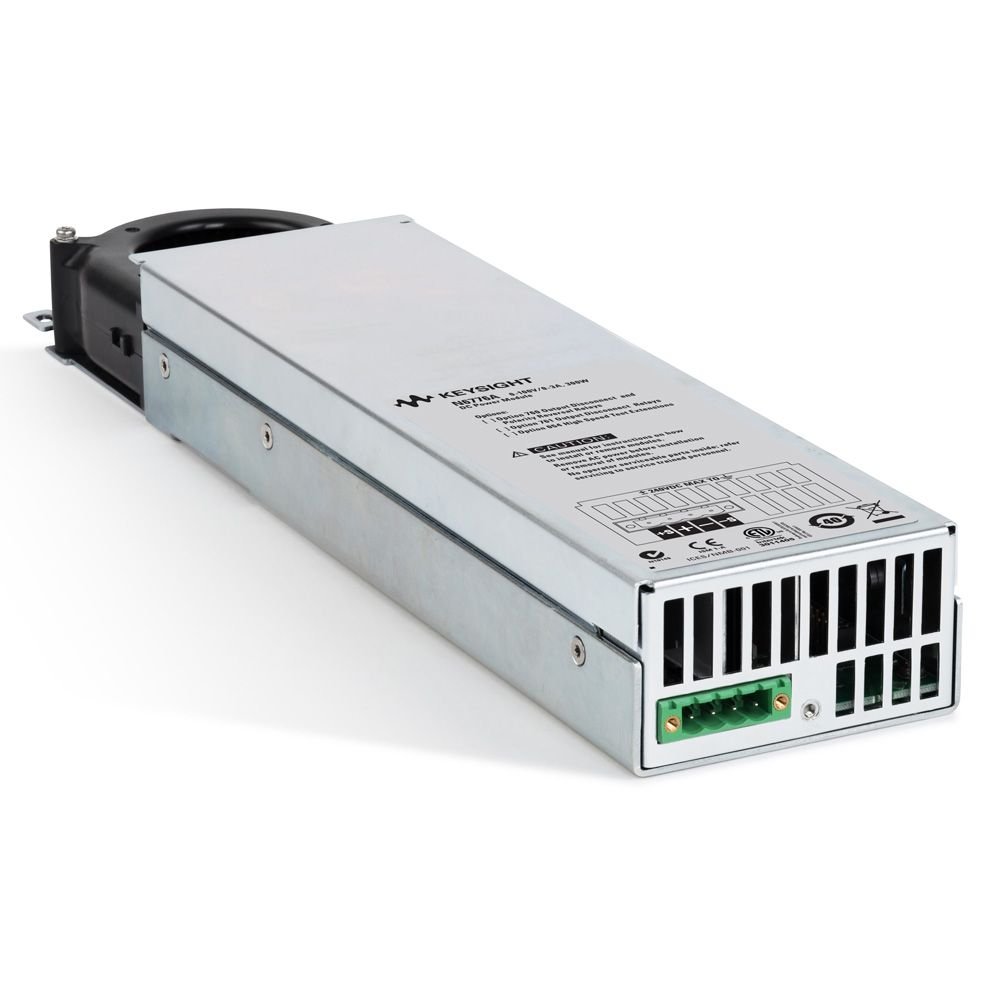

Keysight N6776A

Product Highlights

• Guide to Agilent Power Supplies

  Application Notes:

  – Create Complex Sequences with a DC Power Supply

  – Improve Power Supply Performance & Safety Using Remote Sensing & Remote Inhibit

  – Achieve Cleaner Power Signals by Minimizing Common Sources of Noise

• Output Ratings
• Voltage: 100 V
• Current (derated 1% per °C above 40°C): 3 A
• Power: 300 W
• Programming Accuracy (at 23°C ±5°C after 30 minute warm-up. Applies from min. to max. program)
• Voltage: 0.1% +100 mV
• Current: 0.15% + 30 mA
• Ripple & Noise from 20 Hz to 20 MHz
• CV peak-to-peak: 45 mV
• CV rms: 18 mV
• (PARD) CC rms: 6 mA
• Load Effect (Regulation) (for any output load change, with a maximum load-lead drop of 1 V per lead)
• Voltage: 45 mV
• Current: 6 mA
