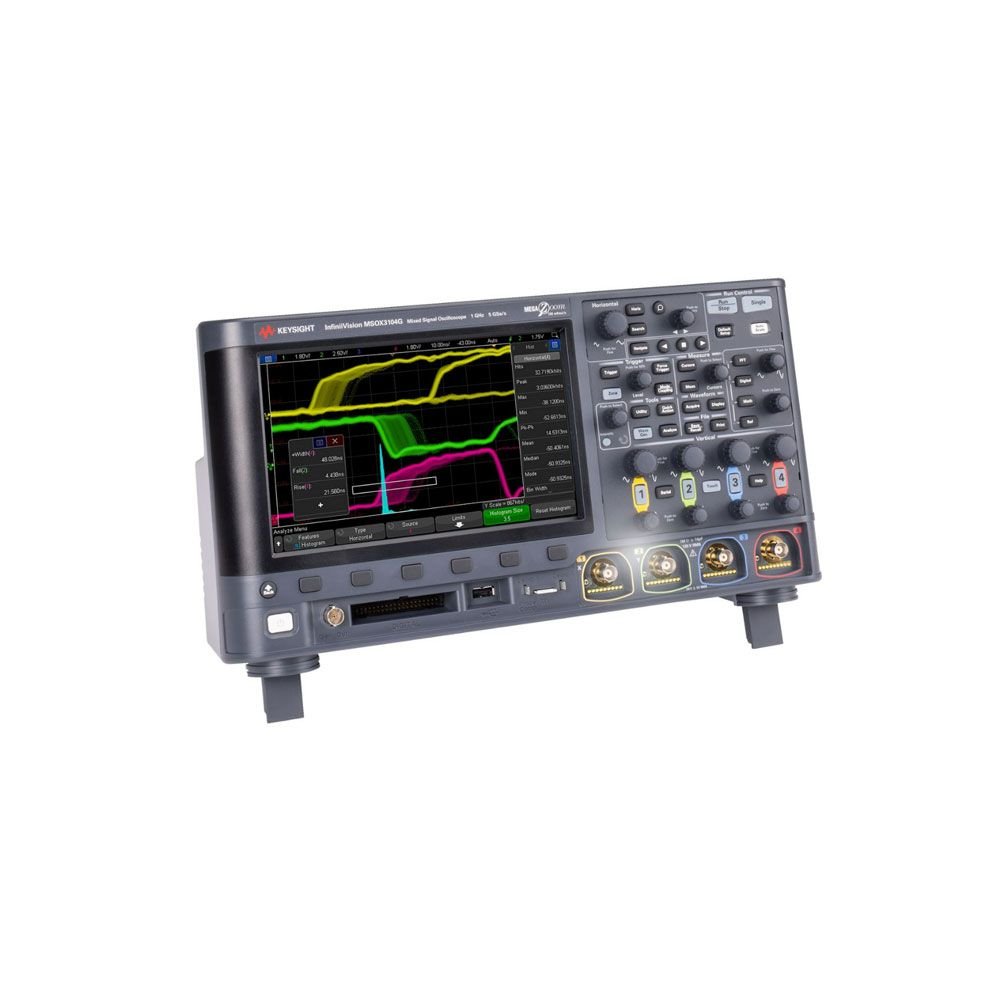

Keysight MSOX3012G

Product Highlights

The MSOX3012G 100 MHz oscilloscope provides 2 analog plus 16 digital channels, 4 Mpts memory, 1,000,000 waveforms/sec update rate, zone touch trigger with an 8.5-in capacitive touch screen, and standard embedded software with waveform and measurement histograms.

• 100 MHz
• 2 analog plus 16 digital channels
• Easily view and analyze your signals with on the large 8.5-inch capacitive touch screen
• Isolate signals in seconds with exclusive zone touch triggering
• See more signal detail with the 1,000,000 wfms/s update rate
• Capture more data with up to 4 Mpts memory
• Expand your measurement capabilities with full upgradability: add bandwidth and advanced application software at any time

Each Unit Includes

• Embedded Software Package (D3000GENB)
• PathWave BenchVue Oscilloscope Software (BV004B)
• Waveform and measurement histograms
• Instrument integration: oscilloscope (with LAN / VGA connectivity module), protocol analyzer, frequency response analyzer (Bode plots), 20 MHz arbitrary waveform generator, 3-digit voltmeter, 8-digital counter and totalizer, and mixed-signal oscilloscope for 16 digital channels
• N2843A passive probe: 500 MHz, 10:1 attenuation (1 per channel)
• N2756A 16 digital channel MSO cable
• KeysightCare technical support
• Secure erase
• Multi-language interface and help: English, Chinese (simplified), Chinese (traditional), Czech, French, German, Italian, Japanese, Korean, Portuguese, Russian, Spanish, Polish, Thai, Turkish
• Documentation CD containing localized user’s guide, service guide, and programmer’s manual
• Localized power cord and overlay
