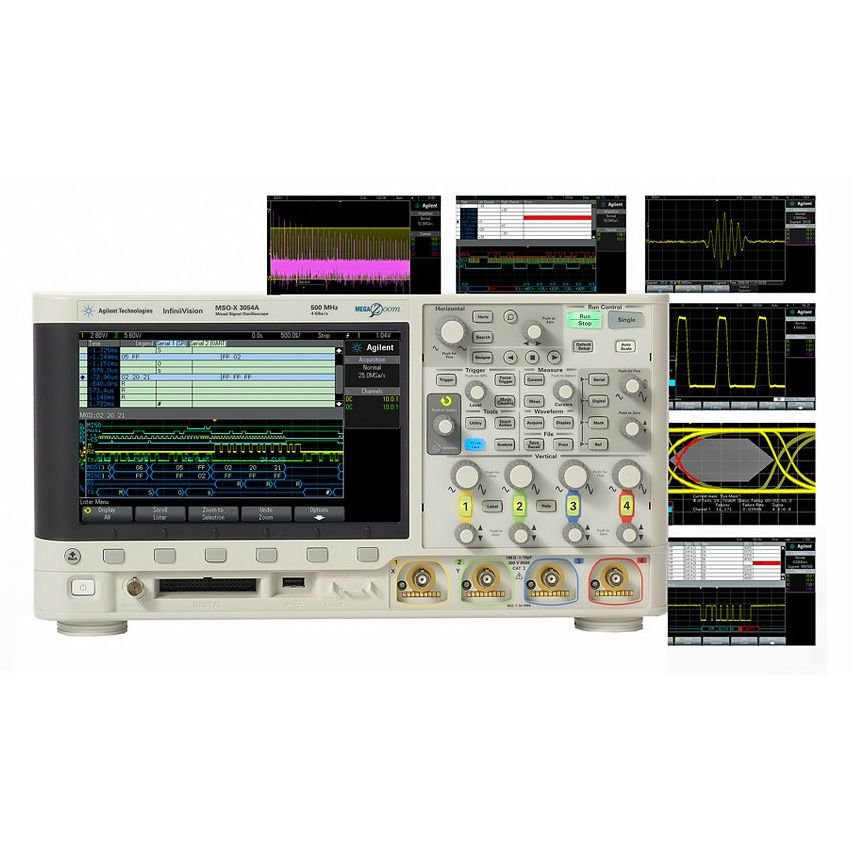

Keysight DSOX3APPBNDL

Each Unit Includes

• DSOX3ADVMATH – Advanced math functions to include transforms,filters and visualization tools such as chart bus logic and state
• DSOX3AERO – Trigger and decode of ARINC a commercial aircraft protocol and military standard 1553
• DSOX3AUDIO – Trigger and decode of I2S an audio protocol
• DSOX3AUTO – Trigger and decode CAN and LIN automotive protocols for debugging automotive systems like Airbag sensors or Tire Pressure control
• DSOX3COMP – Trigger and decode RS232/485 and UART decodes, these are serial busses that communicate in a design to different parts of the chip or circuit
• DSOX3EMBD – Trigger and decode I2C and SPI are inter chip communication busses
• DSOX3FLEX – Trigger and decode of Flexray an automotive protocol
• DSOX3MASK – Mask testing, create a mask, or a template and capture statistics on how many tests/waveforms don’t fall outside the template
• DSOX3MEMUP – Memory upgrade to 4 Meg
• DSOX3PWR – Power analysis tools for switching power supplies
• DSOX3SGM – Segmented Memory allows optimization of memory for capturing more events
• DSOX3VID – HDTV triggering tools
• DSOX3WAVEGEN – 20 Mhz waveform generator and arbitrary waveform generator
• DSOXDVM – 3 digit voltmeter/ 4 functions measures at probe tip independent of the trigger condition
• DSOXEDK – Education signals for teaching labs or self learners
