Keithley 2000-20

Product Highlights

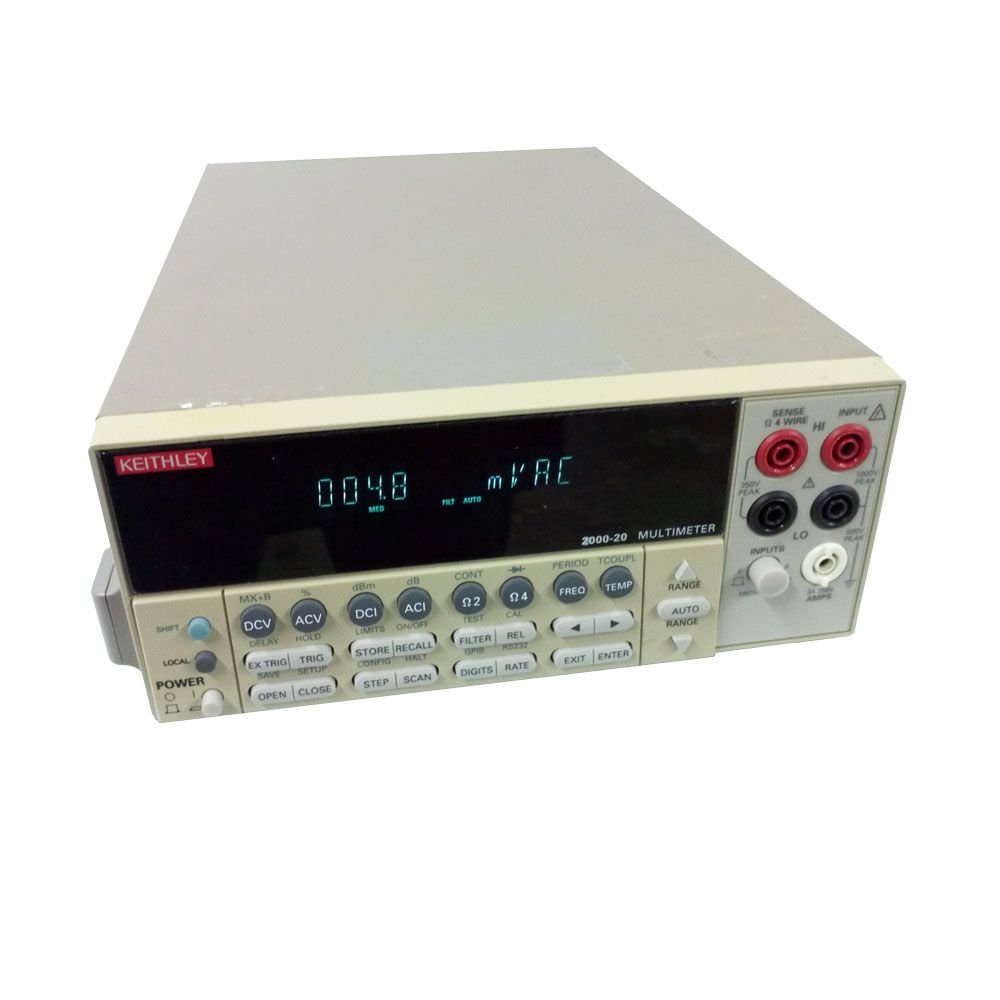

The Keithley 2000-20 Scanning Multimeter is a special version of the Model 2000 6.5 Digit DMM. It’s designed especially for switch-and-measure applications involving up to 20 inputs (channels). The DMM comes complete with the 20-channel scanner card already installed in the option slot, so it’s easy to create a self contained multi-point measurement solution. A quick-disconnect connector on the rear panel simplifies system set-up. The switching card can be controlled from the front panel or via the RS-232 or IEEE-488 interface.

• 6-1/2 Digit Multimeter with factory-installed 20-channel scanner card
• AC Current: 1A-3A
• AC Voltage Range: 100 mV-750 V
• DC Current: 10 mA-3 A
• DC Voltage Range: 100 mV – 1000 V
• Frequency Range: 3 Hz – 500 kHz
• Interface: HP-IB and RS-232
• Number of Digits: 6.5
• Resistance Range: 100 ohm – 100 Mohm
• Switch up to 20 (2-pole) or 10 (4-pole) channels
• Scan rates up to 90 ch/s (DCV)
• Quick-disconnect rear panel connector
• Compatible with existing test software
