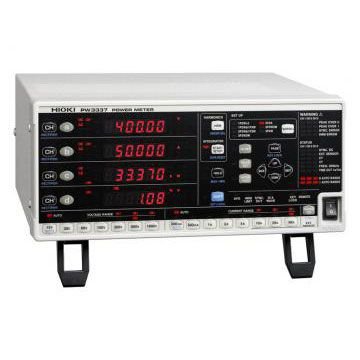

Hioki PW3337-03

Product Highlights

• Power Meter 3 Channels with GPIB terminal and D/A output installed model
• Can measure DC, and single-phase 2-wire to 3-phase 4-wire with 3-channels input
• For development and production of motors, inverters, power conditioners, power supplies, and other devices
• High-precision basic accuracy ±0.1 % (*1)
• (*1) For complete details, please refer to the specifications
• Wide frequency band width of 0.1 Hz to 100 kHz or DC
• High-current measurement up to 65 A direct input
• Harmonic measurement up to the 50th order with IEC 61000-4-7 compliant
• High-accuracy measurement, even with a low power factor for noload testing of transformers and motors
• Built-in external sensor input terminals for measure up to 5000 A AC
• Synchronize up to 8 units for multi-units measurement
