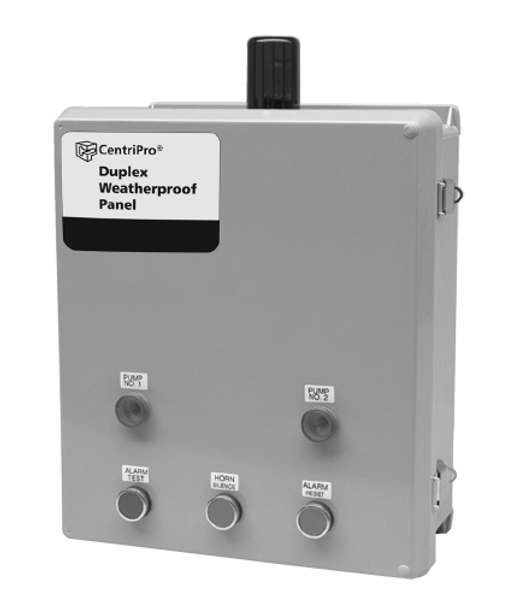

Goulds D34063 SES Duplex Weatherproof Control Panel, 3 Phase, 4.0 to 6.3 amps. FEATURES NEMA 4X, 30 watt, flashing red light and alarm horn – 95db. NEMA 4X, fiberglass enclosure with gasketed, hinged door and stainless steel hardware. Single Phase Field adjustable for 115 or 230V, 60 Hz. 2 pump circuit breakers. Three Phase Field adjustable for 208/230 /460/575V, 60 Hz.115V control circuit transformer. 2 adjustable motor overload protectors. Heaters not required. Provides fully automatic operation for two pumps.Solid state pump alternator circuit displays float status for ease of installation and trouble shooting. Entire unit is UL and CUL listed.

Features:

• Nema 4X, 30 watt, flashing red light and alarm horn – 95db.
• Nema 4X, fiberglass enclosure with gaskedted, hinged door and stainless steel hardware.
• Entire unit is UL and CUL listed.

Single Phase

• Field Adjustable for 115 or 230V, 60Hz
• 2 pump circuit breakers.

Three Phase

• Field adjustable for 208/230/460/575V, 60 Hz.
• 115V control circuit transformer
• 2 adjustable motor overload protectors
• Heaters not required
