GE Panametrics PT9-SYS

Product Highlights

The TransPort PT900 is the latest generation of portable clamp-on flow meter from GE’s Panametrics line of ultrasonic meters. It capitalizes on the ruggedness and superior performance of its predecessor, the TransPort PT878, but delivers a whole new level of intuitive and user-friendly capability based on today’s technology.

• A wide selection of transducers suitable for most applications
• Bluetooth® communication to transmitter
• Easy programming with bright touch screen and multiple-language user interface
• Fast-responding, high-accuracy transmitter with green/red light health indication and 8 GB of datalogging storage
• Velocity, volume, mass, totalizer and energy flow rate measurements
• Easy-to-install clamping fixture
• PT900 portable liquid ultrasonic flowmeter consisting of power adapter, mounting strap with magnet, transducer cable, outer diameter measurement tape, SD card with PT900 application, manuals, and stylus.

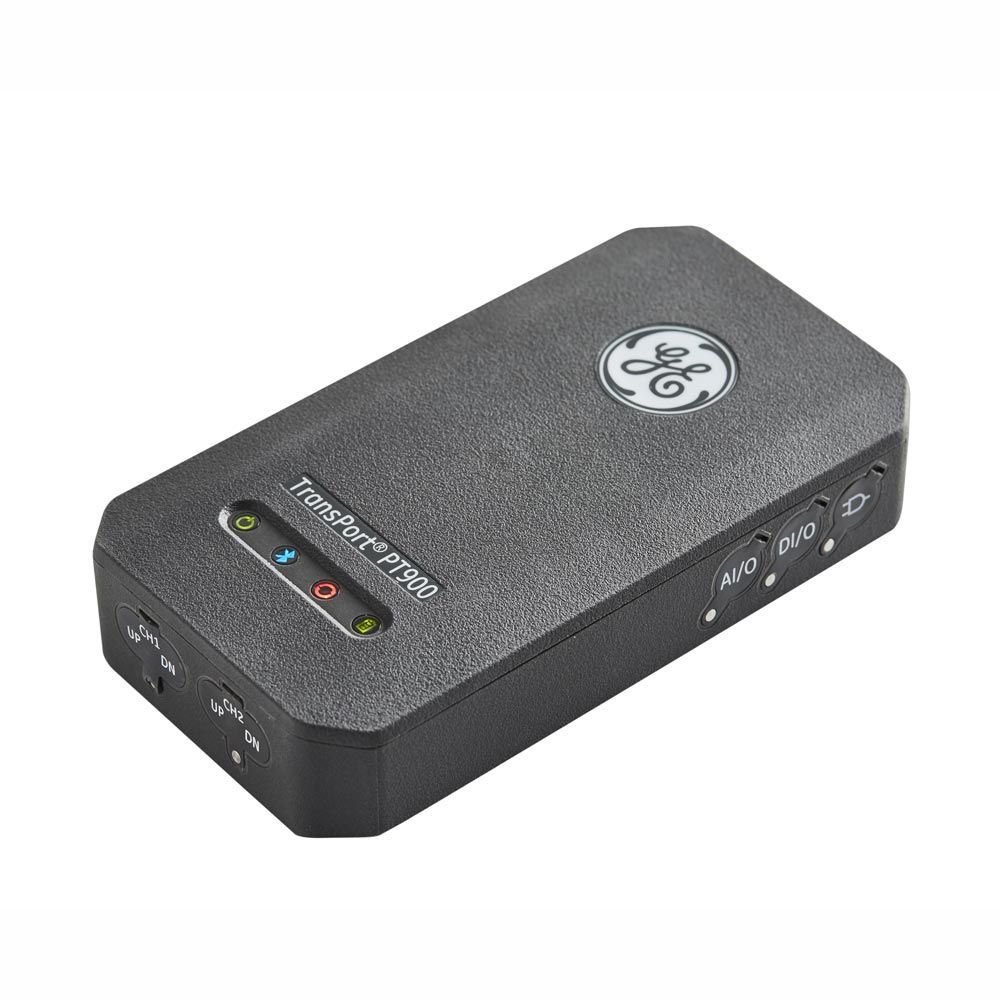

• Single channel PT900 transmitter with internal rechargable battery
• 110/120 VAC (NEMA 5-15P) power cord (typical North America)

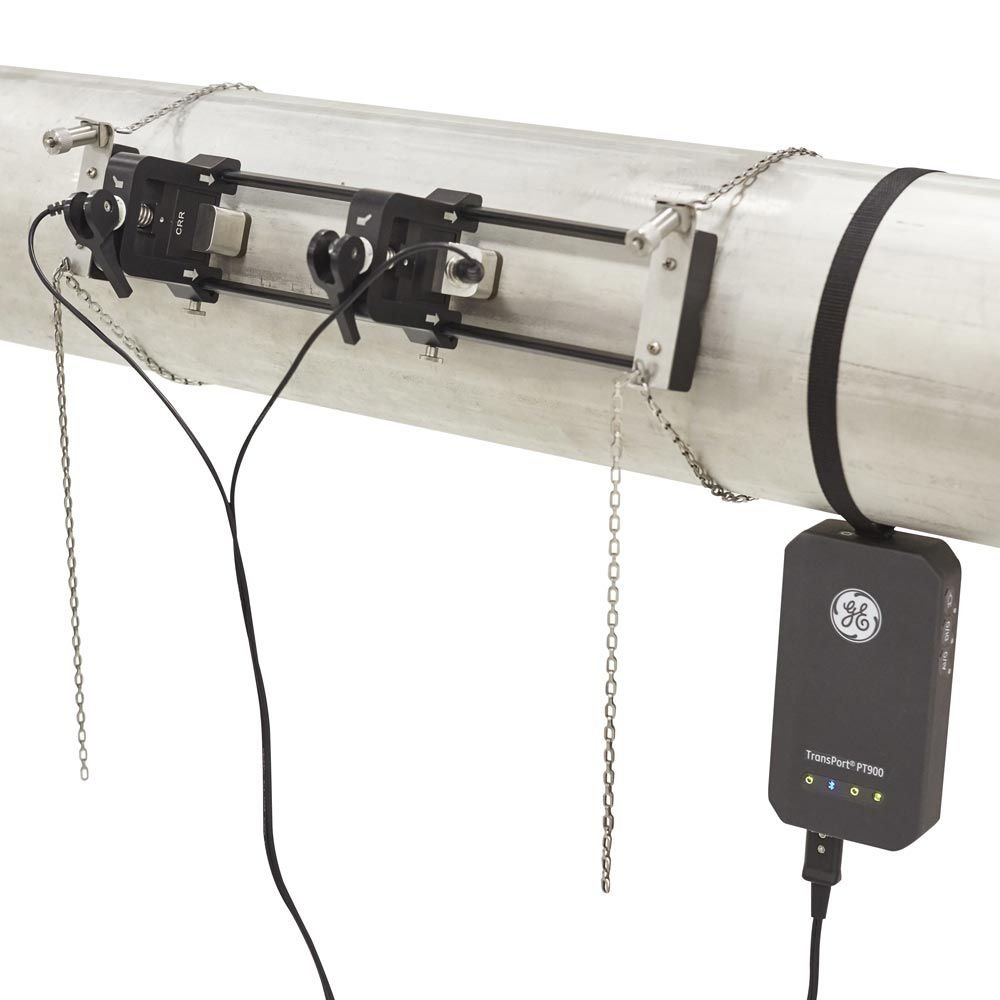

• Pair of medium and large pipe C-RR transducers (510 1MHz, 505 0.5MHz) for -40 to 150°C (-40 to 302°F) applications, 50mm (2″) or larger pipe size, includes PT9 portable clamping fixture. Requires C48 option for over 600mm (24″) pipe sizes.
• No transducer or clamping fixture selected (Kit #2)
• Additional chain assembly for mounting on pipe sizes up to 1200mm (48″)
• Fluid Types
  • Liquids: acoustically conductive fl uids, including most clean liquids and many liquids with small amounts of entrained solids or gas bubbles
• Flow Measurement
  • Patented Correlation Transit-™
• Pipe Sizes
  • Standard: 0.5 to 24 in. (15 to 600 mm) Optional: up to 300 in. (7500 mm) available upon request
• Pipe Wall Thickness
  • Up to 3 in. (76.2 mm) Pipe Material All metals and most plastics Consult GE for concrete, composite materials and highly corroded or lined pipes.
• Accuracy
  • ±1% of reading (2in/50mm or greater pipe sizes) ±2% of reading (0.5in/15mm to <2in/50mm pipe sizes) Installation assumes a fully developed, symmetrical flow profile (typically 10 pipe diameters upstream and 5 pipe diameters downstream of straight pipe run). Final installation accuracy is a function of multiple factors including fluid, temperature range, pipe centricity among other factors.
• Repeatability
  • ±0.2% of reading
• Range (Bidirectional)
  • 0.1 to 40 ft/s (0.03 to 12.19 m/s)
• Response Time
  • Up to 2 Hz
• Measurement Parameters
  • Velocity, Volume, Mass, Energy, Total Flow
• Channels
  • 1 or 2 channels
• Display
  • Tablet with Android operating system (version 4.4 or greater), LCD capacitive touchscreen, 800 x 1280 resolution
• Dimensions
  • 7 in. Tablet: 7.75 x 4.75 x 0.75 in. (196 x 120 x 19 mm) typical
  • 8 in. Tablet: 8.75 x 6.00 x 0.75 in. (222 x 152 x 19 mm) typical
• Battery Life
  • >12 hours of continuous use
• Battery Charger
  • 100 to 250 VAC (50/60 Hz)
• Operating Temperature
  • 0 to 50°C (32 to 122°F)
• Communication with Flow Transmitter
  • Bluetooth®
