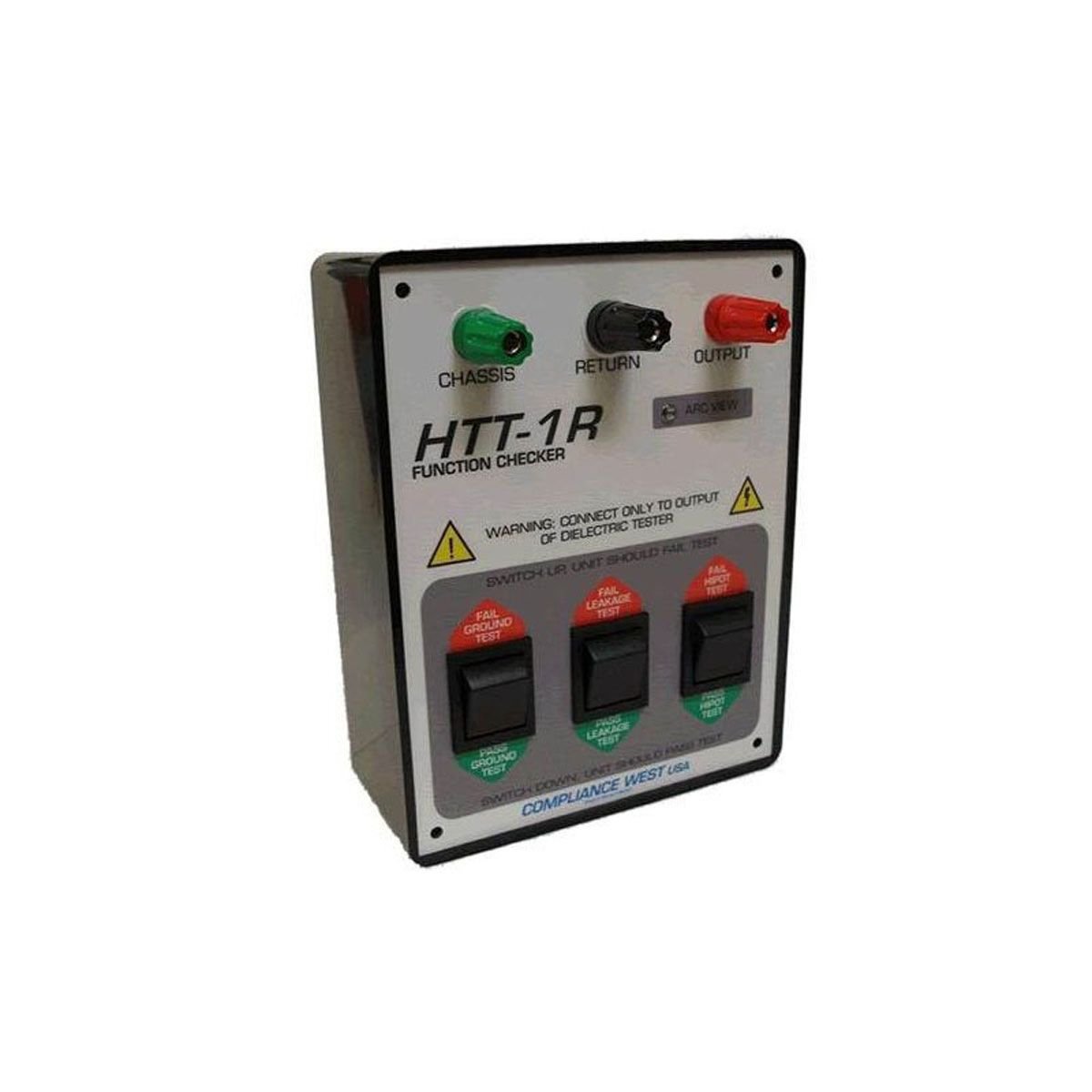

Compliance West HTT-1R-CUSTOM

Product Highlights

• The HTT-1R Custom simulates the following failures:
• Ground Continuity Chassis to Ground (0.01ohm), and/or
• High Leakage Line to Ground (Custom ohm), and/or
• Dielectric Withstand Failure (Arc View window displays an arc at 750Vac ± 400V).
• The HTT-1R can also be set to simulate passing tests:
• Ground Continuity Chassis to Ground (0.025 ohm), and/or
• Normal Leakage Line to Ground (Custom ohm), and /or
• Dielectric Withstand OK (up to 3000 volts)
• Arc Testing is at 750 ± 400Vac. Results visible through Front Panel Window.
• Works with any manufacturer’s Dielectric Withstand or Ground Continuity Tester. The HTT-1R simulates the failures and your tester should return results consistent with the switch settings on the front panel of the HTT-1R
• The HTT-1R is a passive device. No batteries or power is required.
• Verifies proper operation of your equipment in less than a minute.
• Portable.
• Light weight.
• Simple to operate.
• Saves time.
• For testing of Ground Bond Testers up to 30A..
• 1 year warranty.
