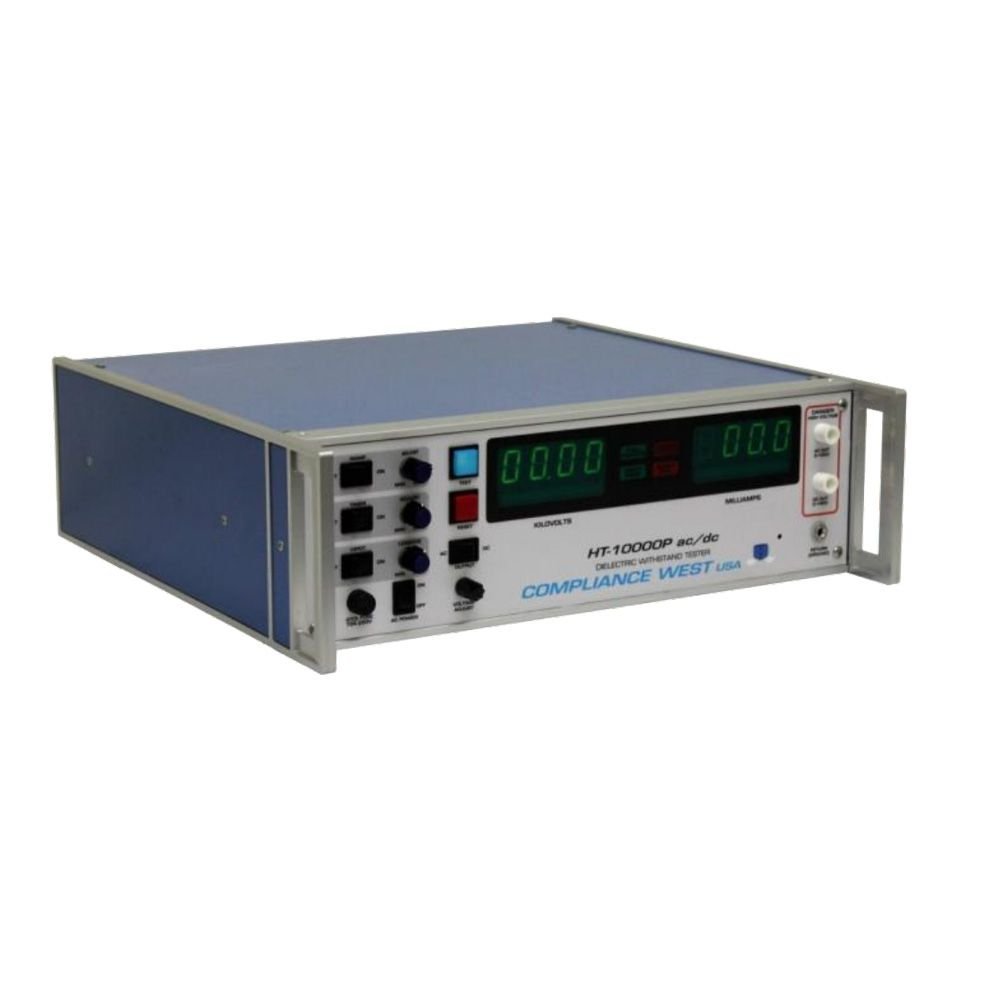

Compliance West HT-10KVP-AC-DC

Product Highlights

• HT10000P AC: AC output to 10000 Volts. Delivers 1 through 8 milliamps. Custom outputs to 25 mA.
• HT10000P DC: DC output to 14000 Volts. Delivers 1 through 5 milliamps.
• Logic Controlled, One-button testing. LED indicators. Buzzer upon failure, test terminates. Test termination defeatable by switch on rear panel. Provided with arc detection circuit to properly detect hipot failures.
• Rear panel adjustments; leakage limit, ramp time, test time and voltage.
• Ergonomic design for safety and ease of use.
• High voltage output jack.
• Automatic voltage ramp-down circuit eliminates residual voltage.
• Designed for product development and laboratory use.
• High efficiency design, low power consumption.
• All test leads included.
• Calibrated to NIST standards.
• 1 year warranty
• HTT-1 and HTT-1RHipot and Ground Continuity Function Checker Compatible
