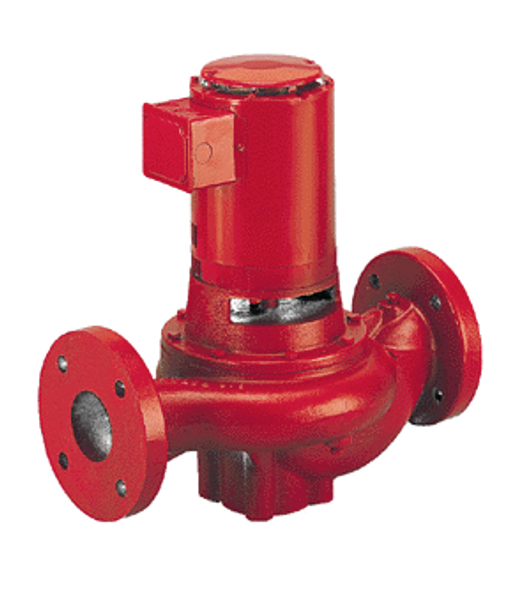

Bell & Gossett Series 80 Pump 3 x 3 x 9-1/2 B With 7-1/2 HP 1750 RPM Motor

Close-coupled in-line mounted pump available in 1-1/2” through 8” sizes. 1/4 to 50 HP at 1750 RPM and 5 to 60 HP at 3500 RPM. Available in bronze-fitted and all-iron construction. Flows to 2500 GPM, heads to 380 feet.

The Series 80 is an efficient, heavy-duty, close-coupled pump designed for horizontal and vertical in-line mounting.

Internally flushed BUNA/Carbon ceramic seals are standard. The internal flushed seal provides five times the flushing flow of pumps designed with externally flushed seals. The Series 80 pump is available in 175# and 250# working pressure and split-coupled designs.

Applications:

• Hydronic Heating & Cooling Systems
• Industrial Process
• General Service
• Pressure Boosting

Advantages

• Close Coupled
• Space Saving
• Long Life
• Low Maintenance
• Horizontal or Vertical Installation
• Several Seal Options
