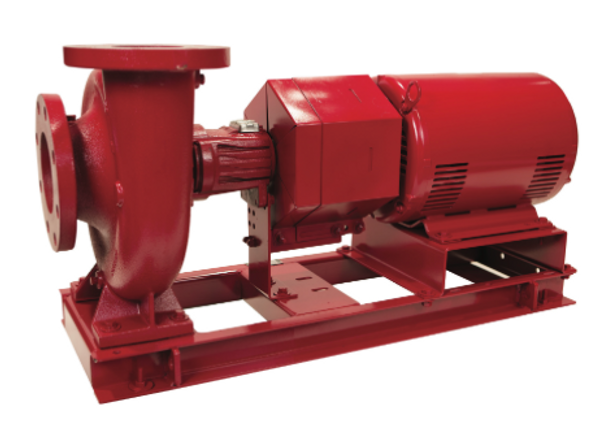

Bell & Gossett e-1510 1.5AD Pump 5 HP 3550 RPM 3 Phase ODP
Roll over image to zoom in
$5,655.00
New Bell & Gossett e-1510 1.5AD Pump 5 HP 3550 RPM 3 Phase ODP fully tested with international warranty. Shop our Pump motor collection for sale, Save up to 30% Off.
Bell & Gossett e-1510 1.5AD Pump 5 HP 3550 RPM 3 Phase ODP. This pump features a 2″ NPT end suction and a 1-1/2″ NPT top discharge.
Features & Benefits
- True Back Pullout
- Internally Self-Flushing Mechanical Seal
- Computer Controlled Impeller Balancing
- Heavy Duty, Rugged Baseplate
- Solid-Foot Mounted Volute
- Center Drop-Out Spacer Coupling
- ANSI/OSHA-Compliant Coupling Gaurd
- Patented i-ALERT Condition Monitor Option
|
Manufacturer:
|
Bell & Gossett
|
|
Series:
|
Series e-1510
|
|
Model:
|
1.5AD
|
|
Connection Type:
|
Threaded
|
|
Connection Size:
|
1-1/2″ x 2″
|
|
Shaft Size:
|
1-1/4″
|
|
Impeller Diameter:
|
7″
|
|
Working Pressure:
|
175 PSI
|
|
Pump Type:
|
Centrifugal
|
|
Mounting Type:
|
Base Mounted
|
|
Construction:
|
Cast Iron
|
|
Horse Power:
|
5 HP
|
|
Motor RPM:
|
3550
|
|
Motor Phase:
|
Three
|
|
Voltage:
|
208-230/460v
|
|
Motor Enclosure:
|
ODP
|
|
Hertz:
|
60Hz
|
|
Max Temp:
|
225*F
|
|
Frame Size:
|
182T
|
