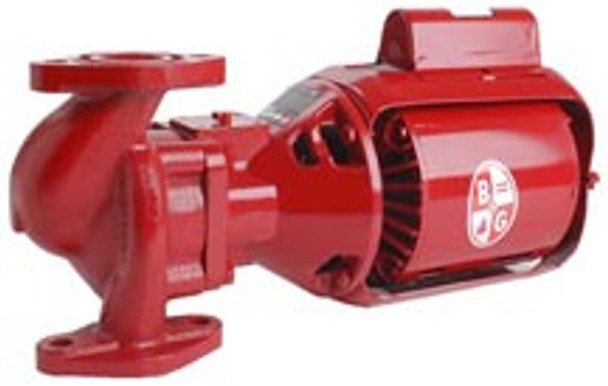

Bell & Gossett 102210 Series HV NFI Circulator Pump
Roll over image to zoom in
$624.00
New Bell & Gossett 102210 Series HV NFI Circulator Pump fully tested with international warranty. Shop our Pump motor collection for sale, Save up to 30% Off.
102210 Bell & Gossett HV NFI Circulator Pump. The Bell & Gossett Series 100 pumps are the pumps of choice for hydronic heating and domestic hot water circulation. Series 100’s three-piece, oil lubricated design provides for easy field service with bearings, shaft and seal all housed in an assembly which can be easily repaired or replaced. The Model HV NFI 102210 is oil lubricated with a 1/6 HP, 1725 RPM, 115v single phase motor.
|
Bell & Gossett Model:
|
HV NFI
|
|
Bell & Gossett Part Number:
|
102210
|
|
Material:
|
Cast Iron
|
|
Voltage:
|
115v
|
|
Max Pressure:
|
125 psi
|
|
Horse Power:
|
1/6
|
|
Connection Size:
|
1″, 1-14″, 1-1/2″,
|
|
Flow Range (gallons per minute):
|
0-40
|
|
Max Flow (gallons per minute):
|
40
|
|
Head Range (FT):
|
0-12
|
|
Max Head (FT):
|
12
|
|
Hertz:
|
60
|
|
Phase:
|
Single
|
|
RPM:
|
1725
|
|
Max Temp (F):
|
225*F
|
|
Connection Type:
|
Flanged
|
