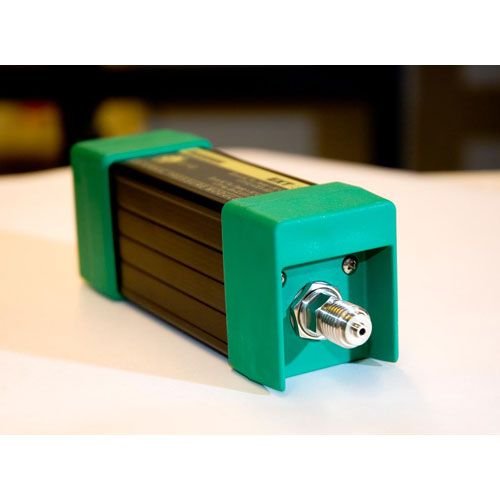

Beamex EXT600

Product highlights

Beamex EXT external pressure modules introduce new configuration possibilities and add flexibility, as it is possible to calibrate even more pressure ranges with the same calibrator. This way, the Beamex calibration equipment meets your needs even better. Beamex offers a wide range of external pressure modules – from vacuum to 1000 bar / 14 500 psi. External pressure modules are compatible with Beamex’s MC6, MC5, MC5-IS, MC5P and MC2 Calibrators.

• Increases your configuration possibilities
• Possibility to calibrate even more pressure ranges with just one calibrator
• Pressure ranges from vacuum to 1000 bar / 14 500 psi
• Provides high accuracy for a wide pressure range
• MPa:
  • Range – 0 to 60 MPa
  • Resolution – 0.001
  • Accuracy – 0.007 % FS   0.01 % RDG
  • 1 Year Uncertainty – 0.015 % FS   0.025 % RDG
• PSI:
  • Range – 0 to 9000 psi
  • Resolution – 0.1
  • Accuracy – 0.007 % FS   0.01 % RDG
  • 1 Year Uncertainty – 0.015 % FS   0.025 % RDG
• bar:
  • Range – 0 to 600 bar
  • Resolution – 0.01
  • Accuracy – 0.007 % FS   0.01 % RDG
  • 1 Year Uncertainty – 0.015 % FS   0.025 % RDG
