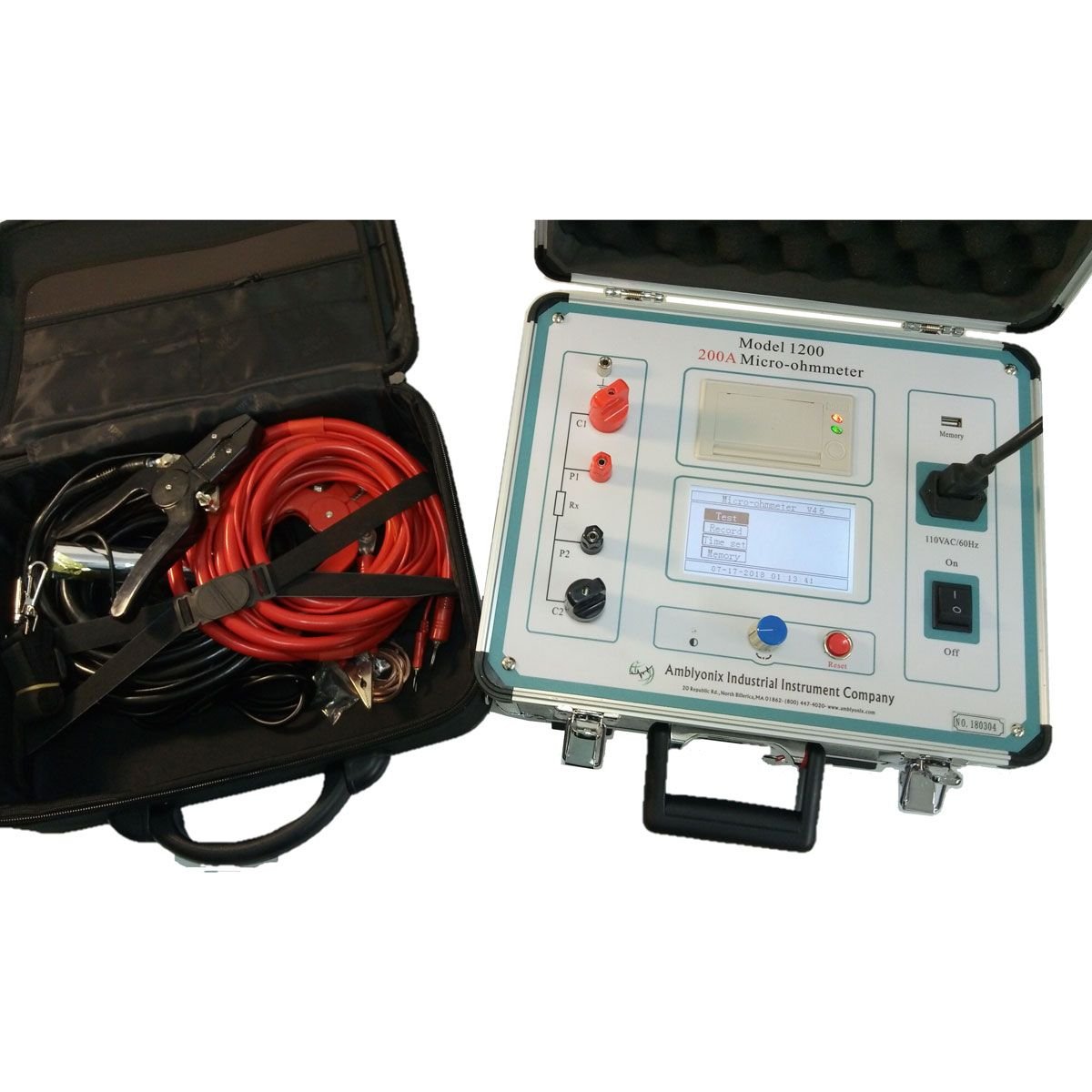

Amblyonix 1200

Product Highlights

Continuous and instantaneous ratede output. The Model 1200 is a 200A micro-ohmmeter designed to be light-weight and extremely durable. It is perfectly suited to perform resistance measurements on circuit breakers, switchgear, buss connections, and a wide variety of other applications.Features:

• Continuous and instantaneous rated output
• Measurement times from 5 to 599 seconds
• Stable readings, even in electrically noisy environments
• Temperature compensated measurements
• 16 bit dual channel high-speed A to D Processor
• Over-temperature protection circuit
• Intuitive man-machine interface setup
• USB interface for available download of measurement data
• Small and lightweight package.

Specifications:

• Measurement range: 0 to 2999.9 µΩ
• Resolution:  0.01 µΩ (0 to 99.99 Ω), 0.1µΩ (100.0 to 2999.9 Ω)
• Current DC, to 200A (selectable 50, 100, 150 and 200 A ranges)
• Accuracy ±(0.5% reading 2 digit)
• Continuous working time from 5 to 599 seconds
• Display: LCD
• Communications: USB
• Power supply: 120 VAC ±10%, 60 Hz
• Power: 1200W
• Storage capacity: 200 measurements
• Operating environment: Temperature 14°F to 104°F , humidity:?80%RH
• Dimensions: 15″
