AEMC PEL 105 W/4 196A-24-BK
Roll over image to zoom in
$2,350.00
AEMC PEL 105 W/4 196A-24-BK with Power & Energy Logger w/4 196A- 24-BK(WP IP67,DataView Software. Order #: 2137.59. Mfg #: 2137.59

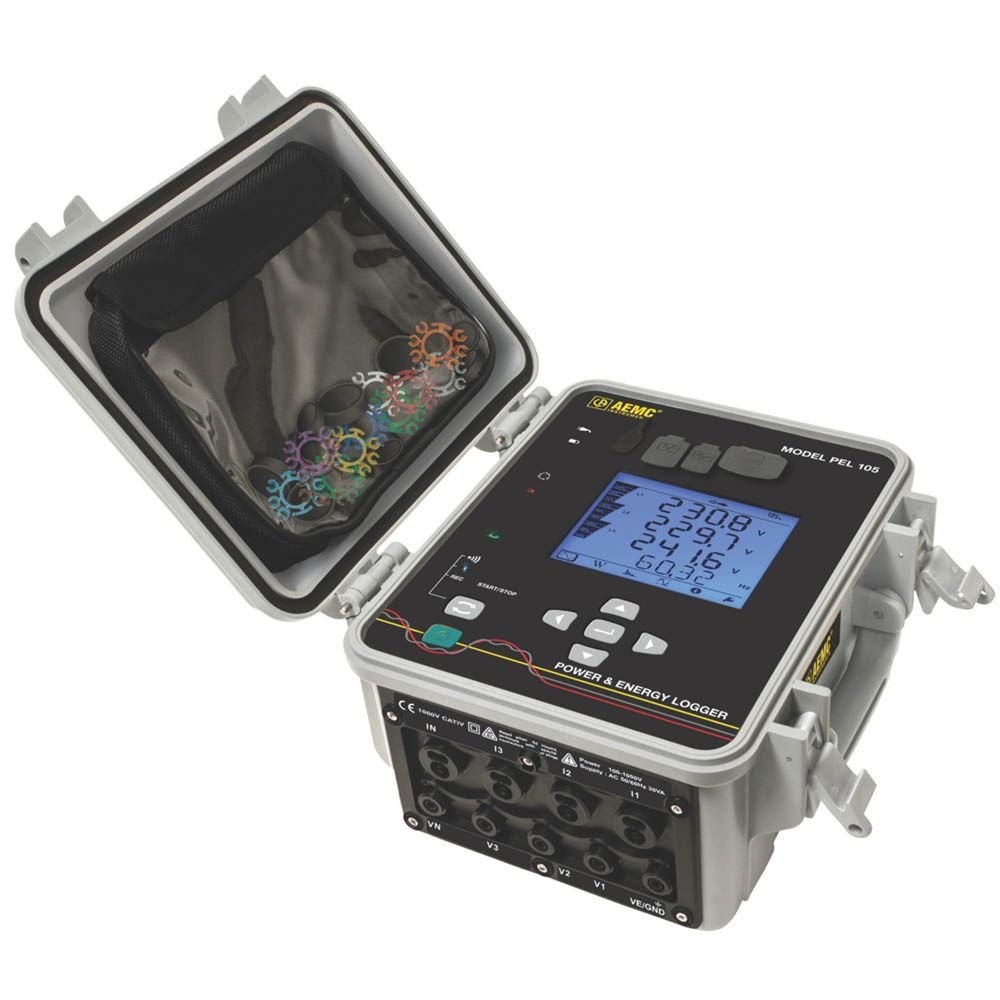

AEMC’s Model PEL 105 is a simple to use, power and energy data logger that monitors both traditional and renewable energy sources. It monitors and records power, energy, cost and harmonics locally or from anywhere in the world. The PEL 105 is built into a waterproof case with an IP67 rating designed for outdoor use and is ideal for pole mounting. This product is perfect for electricians, engineers and contractors doing work in the areas of building and system monitoring and upgrades, including compliance to article 220.87 of the NEC, as well as overall energy audits and incoming power monitoring.
Product Highlights
- Waterproof IP67 rated including the current sensors
- 5 voltage and 4 current measurement inputs
- Measures volts, amps, watts, VARs, kWh, power factor and harmonics out to the 50th
- Track energy costs including time of use
- Wi-Fi, Bluetooth Class 1, USB, LAN and Ethernet communication built in
- Powered from phase inputs up to 1000VAC or from a wall receptacle
- User selectable storage rates and demand intervals
- Pole mountable
- Can be configured directly from the front panel, through the DataView® control panel or the free Android App
- Satisfies the recommendations of NEC 220.87
- Minimal programming required
- Automatic recognition of the connected current sensors/probes
- 1000V CAT IV
- DataView® software for data storage, real-time display, analysis and report generation
Each Unit Includes
- Four 196A-24-BK AmpFlex Sensors (Waterproof IP67)
