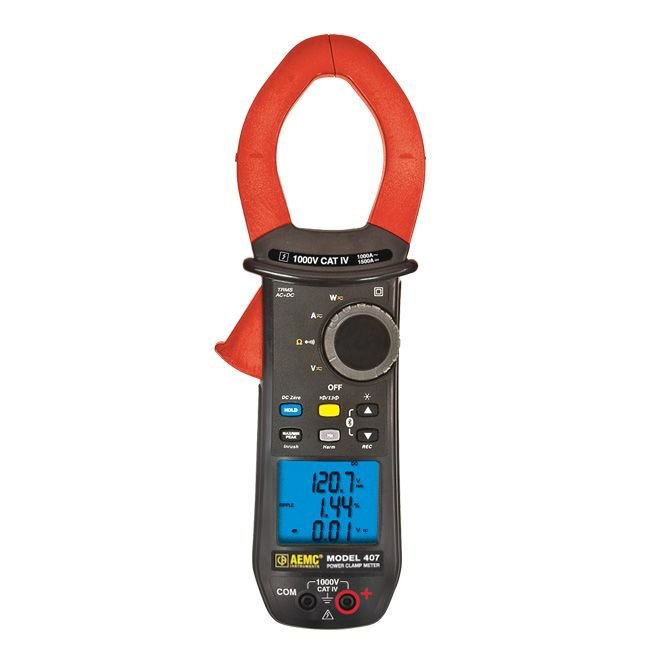

AEMC 407
Roll over image to zoom in
$302.00
AEMC 407 with Power Clamp-On Meter, TRMS, 1000VAC/DC, 1000AAC/1500ADC. Order #: 2139.51. Mfg #: 2139.51
Product Highlights
- 1000 V CAT IV Rated
- Jaw Opening up to 2.36″
- IP54 Rated
- 10,000 Count Blue Electroluminescent Backlit Display
- Records up to 1000 Measurements
- TRMS Measures up to 1000V AC, DC and AC DC with Resolution to 10mV
- Measures up to 2000 Amps AC, 3000 Amps DC
- Measures Single and Three Phase Power (Real, Reactive and Apparent) up to 3MW with Resolution to 1W
- Displays Three Measurements Simultaneously
- Measures Frequency to 20kHz with 0.1Hz Resolution (Model Dependent)
- InRush Current Measurement with 1mS Capture, True InRush
- Measures Harmonics up to the 25th
- Phase Rotation Indication
- Agency Approved by UL, CSA, VDE, GS (TUV)
- RoHS Compliant
- Continuity Buzzer (>40Ohm)
